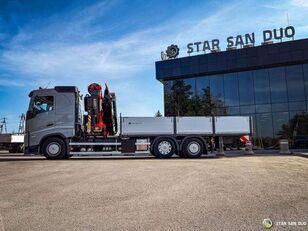

Volvo FH 500 6x2 FASSI F545R.A.2.25 CRANE KRAN NEW !! Açık Kasa Kamyon

Brand : Volvo
Model : FH 500 6x2 FASSI F545R.A.2.25 CRANE KRAN NEW !!
Year of manufacture : 2025
VAT : 23
Registration year : 2025-06
Condition : Used
Axle configuration : 6x2
Meter read-out : 1km
Emission class : Euro 6

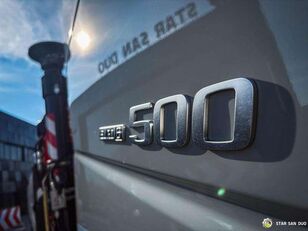

Engine output : 500hp
Transmission : Automatic
ID:504 1. Volvo FH D13 500 WB4900 6x2 chassis • 6x2 drive • Front pneumatic axle 9000 kg • Rear bogie cushion 23000 kg

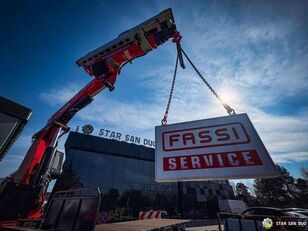

first drive axle 13 tons, second hydraulically steered axle 10 tons, • Technical weight of the set 50000 kg • Frame reinforced along the entire length (inner insert 5mm) • D13 500kM Euro 6 phase E engine, • VEB+ engine brake, • I-shift automatic gearbox, one crawler gear, • Rear axle without hub reduction ratio 2.64 • Rear coupling fi 40mm Rockinger, • Wheelbase 4900mm, • FH sleeper cab with standard height, • Gray color silver gray, • Two benches, • Two heated air-suspension comfort seats 1+1, • Webasto dry 2 kW, refrigerator in the cabin, • Leather multi-function steering wheel, • Rich set of instruments, • Reversing camera and blind spot camera with additional multimedia display, • EC 4.0 tachograph • Preparation for CB and FMS communication, • 6 LED work lamps, • Front and rear main LED lamps, • Rooster warning lamps on the roof, • Central locking with remote control, • Axle load indicator, • Front collision warning system with electronic brake, 2. Fassi F545RA.2.25 crane mounted behind the cabin • 5 hydraulic arms • 5/6 function • Unlimited 360 degree rotation • Support legs rotated 180 degrees in 7790 mm spacing • Additional support legs in 4984 mm spacing • Radio control with Start/Stop control and engine speed control • FSC H control system, which controls stability and manages lifting functions depending on the support spacing • LS variable displacement hydraulic pump, • Crane adapted to mount the boom • Winch preparation
mounting plate, 7th hydraulic section and remote control. • OPTION
2T or 3T winch, the winch can work with the crane alone or with the crane and boom. • OPTION
additional hydraulic arms (maximum 8 arms) • OPTION
additional manual arms, • OPTION
additional boom
(maximum 6 hydraulic arms) 3. Fixed body • External body approx. 6350mm, external width 2550mm (inside approx. 6275mm, internal width 2480mm) • Twist Lock fastenings in the floor for 20' containers • Steel front wall 1000mm high
chain and sling holders, • 25mm removable aluminum rear board 800mm high, • 25mm aluminum side boards 800mm high, • Removable side boards divided into 3, • Two 800mm removable middle and rear posts, • 9 cargo handles in the plating per side
load capacity 3 tons each, • Floor made of 24mm thick non-slip plywood, • Road load capacity approx. 7.5 tons
